技术参数

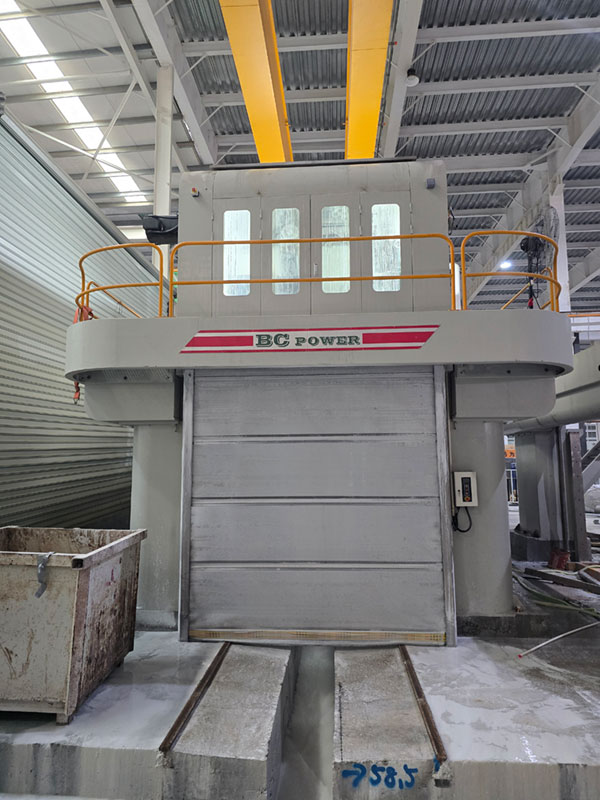

高速金刚线锯-80/90/100
| Model NO. | Unit | 80 | 90 | 100 |
| Max.cutting block size(L x W x H) | mm | （3200~3600）x2000x2200 | （3200~3600）x2250x2200 | （3200~3600）x2500x2200 |
| Number of drive rollers | root | 4 | 4 | 4 |
| Diamond wire diameter | mm | 0.45~1.0 | 0.45~1.0 | 0.45~1.0 |
Maximum sawing feed rate | mm/h | 40-1100 | 40-1100 | 40-1100 |
| Maximum linear speed of diamond wire | M/S | 0M/S-45M/S | 0M/S-45M/S | 0M/S-45M/S |
Maximum storage capacity of retracting and unwinding rollers | m | 40000 | 40000 | 40000 |
| Cutting form | Junk material jacking | Junk material jacking | Junk material jacking | |
| Feed direction | Longitudinal | Longitudinal | Longitudinal | |
Main roller motor power | kw | 64 | 64 | 64 |
Angle adjustment motor | kw | 3 | 3 | 3 |
| Lifting motor power | Kw | 7.5 | 7.5 | 7.5 |
Water consumption approx | m³/h | 80 | 90 | 100 |
Dimension(L x W x H) | m | 10x5.025x5.55 | 10x5.025x5.55 | 10x5.025x5.55 |
| Total installed power | Kw | 330 | 330 | 330 |
Weight | ton | 45 | 45 | 45 |
